How to Test Battery by Vident IBT100?

Vident iBT100 12 Volt Automotive Battery Analyzer allows you to analyze the battery healthy status and view battery charging status. Check the guide of how to use it.

Step 1: Press the ENTER button to start the test. BAT. LOCATION Menu will display.
Step 2: Scroll with the UP or DOWN button to highlight OUT OF VEHICLE or IN VEHICLE from the BATTERY LOCATION menu and press ENTER to select the battery location.

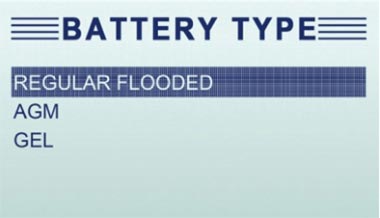

Step 3: Scroll with the UP or DOWN button to select the battery type from the BATTERY TYPE menu and press ENTER to confirm.

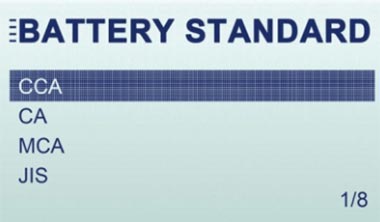

Step 4: Scroll with the UP or DOWN button to select the battery standard from the BATTERY STANDARD menu and press ENTER to confirm.
Note: Not all rating systems are available for each application.

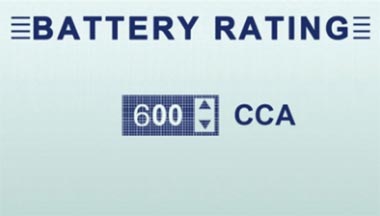

Step 5: Use the UP or DOWN button to change measure range till you enter the correct range of your battery. Press ENTER to start the test

Note: If the battery belongs to CCA standard, just select the corresponding
CCA standard value and press ENTER to start the testing.

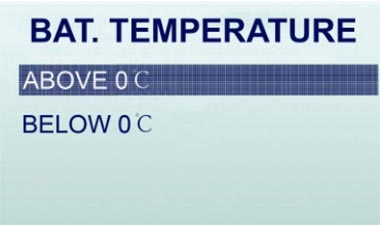

Step 6: The BAT. TEMPERATURE menu will display to make sure the battery result be more accurate. Scroll with the UP and DOWN button to select the right battery temperature to confirm.

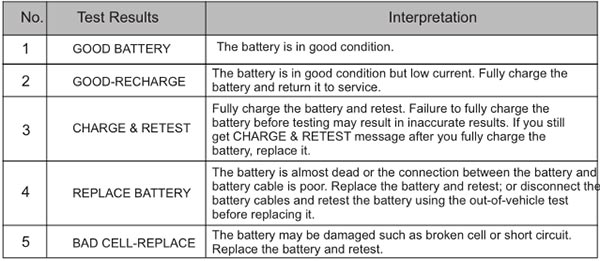

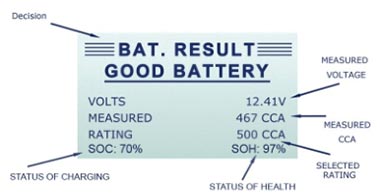

Step 7: View test results on the screen. Depending on battery status, one of the following test results may display.
