Vident iEasy200 Read Fault Code Successfully with GODIAG GT100

Purpose: Check if Vident iEasy200 can work with GODIAG GT100 to read fault code.

Before entering the operation process, let’s learn something about Vident iEasy200 and GODIAG GT100.

What can Vident ieasy200 coder reader do?
It can work with most 1996 and newer OBDII& CAN compliant cars, light-duty trucks, SUVs, minivans and hybrid sold worldwide to do the following functions:
– Read codes
– Clear codes (incl. generic codes, pending codes and manufacturer’s specific codes)
– Read live data stream
– Detect OBDII freeze frame information
– Display I/M readiness status
– Retrieve vehicle information

What is GODIAG GT100?
The full name of GODIAG GT100 is GODIAG GT100 AUTO TOOLS OBD II Break Out Box ECU Connector.
It’s the latest testing platform for OBDII protocol communication detection and ECU maintenance / diagnosis / programming / coding.

What can GODIAG GT100 do?
1.It can convert the car OBD2 interface into 16 pin for signal detection and electrical level conversion.
2.It is able to connect the single modules or multiple modules of the vehicle.
3.It can be connected with any diagnostic tool to tell whether the car communication is good or not.
4.It can also supply power to the car when you change the battery to avoid the vehicle control module data being lost, automatically locked, the key remote control fails and the fault light turns on.

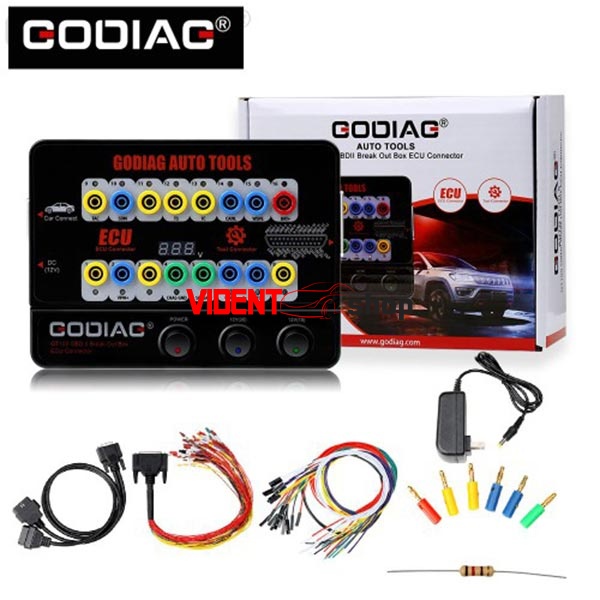

GODIAG GT100 AUTO ECU Connector package including:
1pc x Host
1pc x OBD 2-in-1 extension cable
1pc x Colored jumper cable
1pc x Power supply 12V
1pc x Resistance 120 ohm
6pcs x Banana plug
24pcs x Wire accessories, Dupont 2.54mm connector female pins

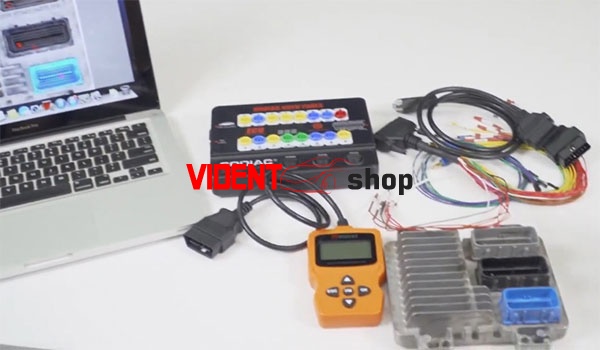

How to read fault code by Vident ieasy200 and GODIAG GT100?
Preparation:
GODIAG GT100 AUTO TOOLS OBD II Break Out Box ECU Connector
Vident iEasy200 OBDII/EOBD+CAN Code Reader
ECU module

Step-by-step guide:

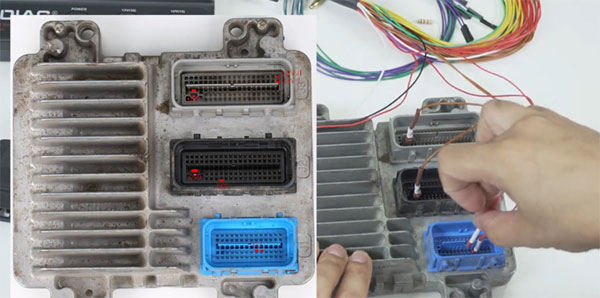

1.Connect GODIAG GT100 with the ECU module by the colored jumper cable (GODIAG GT100 package) depend on the following wiring diagram

2.Connect GT100 with iEasy200 code reader via the OBD 2-in-1 extension cable (GODIAG GT100 package)
3.Use the banana plug as the extend cable to connect the resistance 120 0hm

4.Supply power to GODIAG GT100 by an AC power adapter

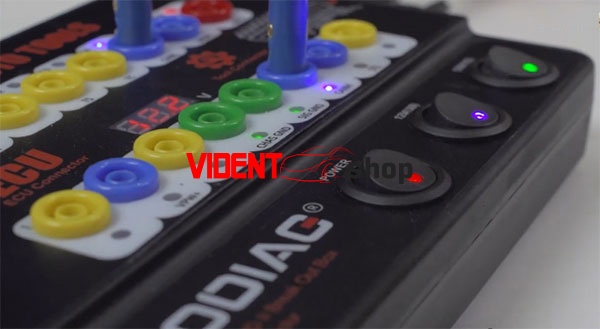

5.Turn on GT100 power switch
The CAN protocol light flashes to indicate that the code reader is communicating with the ECU.

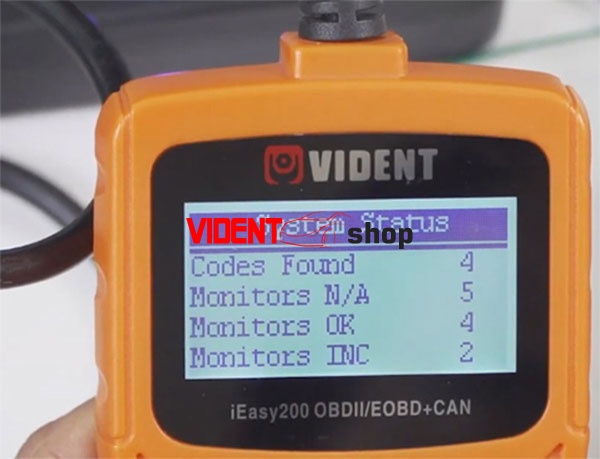

6.There are 4 codes found by iEasy200

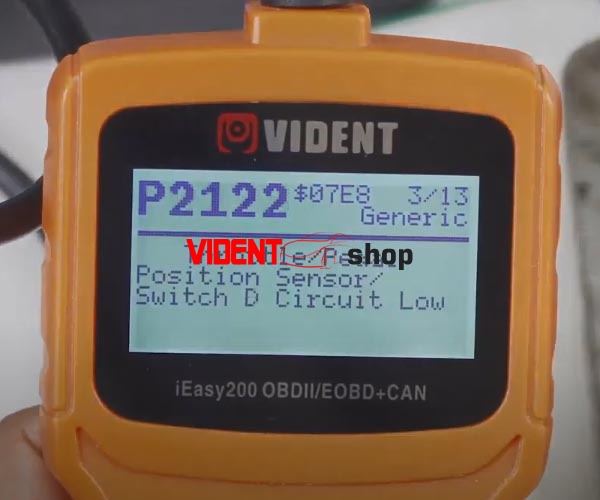

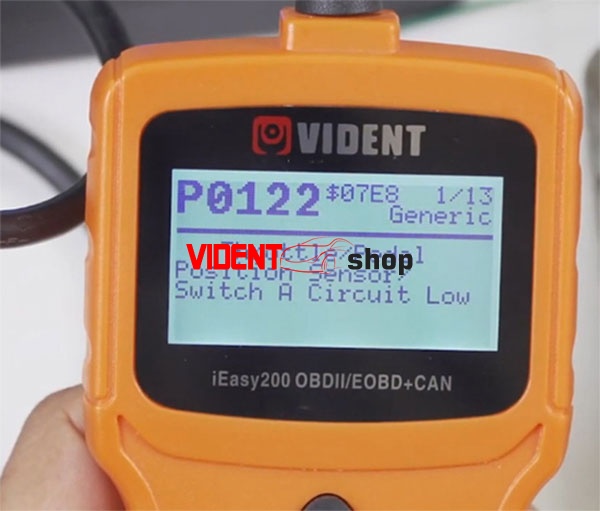

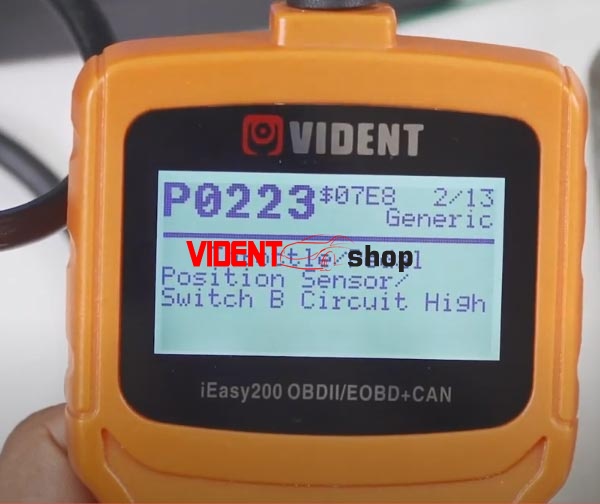

7.Read out the fault codes
